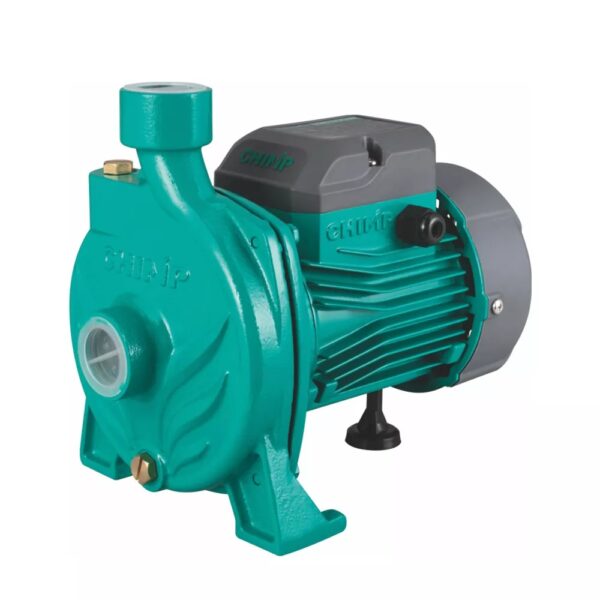

MODEL: CHIMP 2MCP160/160 Centrifugal Water Pump
Pump
- 304 S.S. impeller
- 304 S.S mechanical seal
- Cast iron pump body and support be electrophoresis
- Suction: 8M
- Liquid: clean water;《50°C
- Liquid PH value: 6.5-8.5
Motor
- Copper wire
- With thermal protector
- 304 S.S shaft
- Insulation class: B
- IPX4
- Ambient temperature: up to +40°C Liquid temperature: up to +40°C
- Max. Working pressure: 6bar
Specification
| Item | Value |
|---|---|
| Model | 2MCP160/160 |
| Voltage | 240/415 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. Flow (L/min) | 110 |
| Max. Head (m) | 48 |
| Max. Suction (m) | 9 |
| Inlet/Outlet (in) | 1¼” × 1″ |
| GW (kg) | 25 |
| Packing Dimension (mm) | 445 × 243 × 300 |
