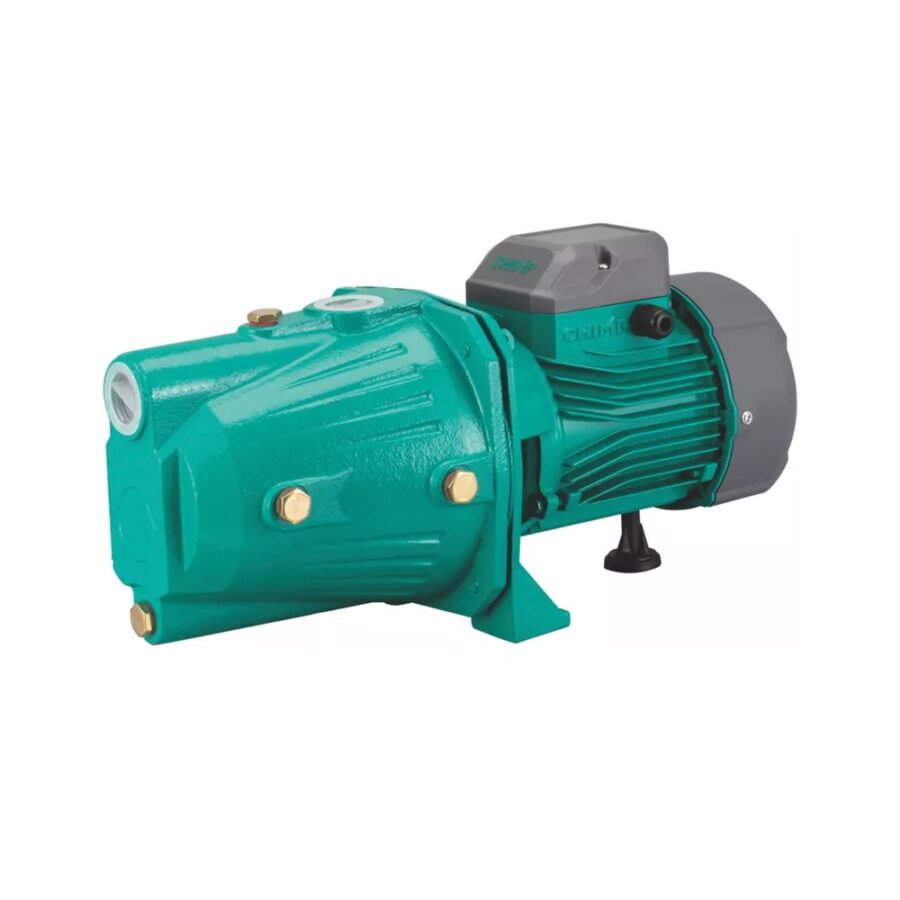

CHIMP JET-100L Water Pump
CHIMP JET-100L Water Pump - Image 2

CHIMP JET-100L Water Pump

Pump Installation And Applications

It can be used to transfer clean water or other liquid similar to water in physical and chemical properties. It is suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.

Categories: , Tag: Brand:

Model: CHIMP JET-100L Self Priming Water Pump

Pump

  • Cast iron pump body and support
  • Stainless steel/Brass/PPO impeller
  • Max. liquid temperature: +40 °C
  • Max. Suction: +9m

Motor

  • Motor with copper winding
  • Shaft: Stainless steel welded shaft/45# steel shaft
  • Insulation Class: B or F
  • Protection class: IPX4
  • Max. Ambient temperature: +40℃
  • Cooling: External ventilation

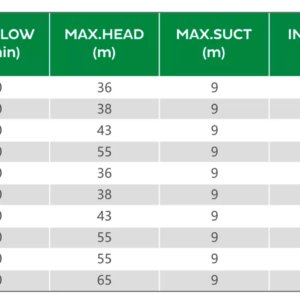

Specification:

Item Value
Model JET-100L
Voltage 240
Power (HP)/ (kW)  1 / 0.75
Max. Flow (L/min) 60
Max. Head (m) 43
Max. Suction (m) 9
Inlet/Outlet (in) 1″ × 1″
GW (kg) 15.5
Packing Dimension (mm) 425 × 200 × 230
