JINDU CF-9110 Diamond Core Drill Machine

The CF-9110 is a portable handheld diamond core drilling machine designed for drilling holes in reinforced concrete and similar construction materials. It combines high drilling efficiency with lightweight, compact design, making it suitable for professional and jobsite use where mobility and precision are important.

Categories: , Brand:
MODEL: JINDU CF-9110 Diamond Core Drill Machine
Features:

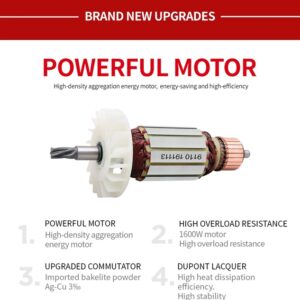

  • A powerful 1600 W electric motor that delivers sufficient torque for effective drilling work.

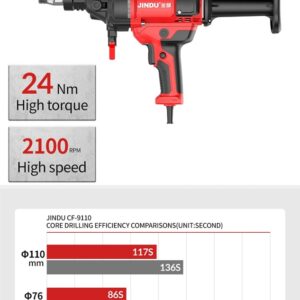

  • Variable speed capability with no-load speeds up to around 2100 rpm, helping operators match drilling speed to the material.

  • A maximum drilling diameter of around 110 mm, suitable for larger holes in concrete or masonry.

  • A compact and portable form factor, with a gross weight of about 4.1 kg for easier handheld operation.

  • Designed for use with diamond core drill bits, providing accurate, smooth holes and durability on tough materials.

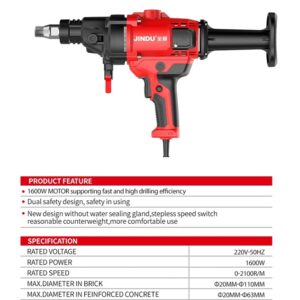

Specification:
Item Value
Collet Size 110 mm
Input Power 1600 W
Rated Voltage 220 V
Frequency 50 Hz
No-Load Speed 2100 r/min
Total Weight 4.1 kg
