JINDU CF-7166A Diamond Core Drill Machine

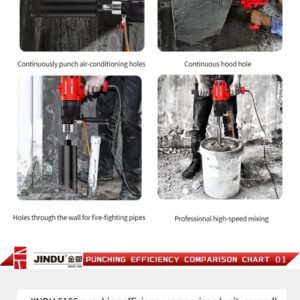

JINDU CF-7166 is a professional handheld diamond core drilling machine, designed for precision drilling in reinforced concrete, masonry, and other hard construction materials. It’s built for portable jobsite use and typically paired with diamond-tipped core bits to create clean, accurate holes for installations like piping, HVAC penetrations, conduit openings, and structural anchor points.

Although the official product page lists CF-6166, the CF-7166 variant appears in trade references with the same equipment configuration, often sold with a stand or accessories for drilling stability.

Categories: , Brand:
MODEL: JINDU CF-7166A Diamond Core Drill Machine

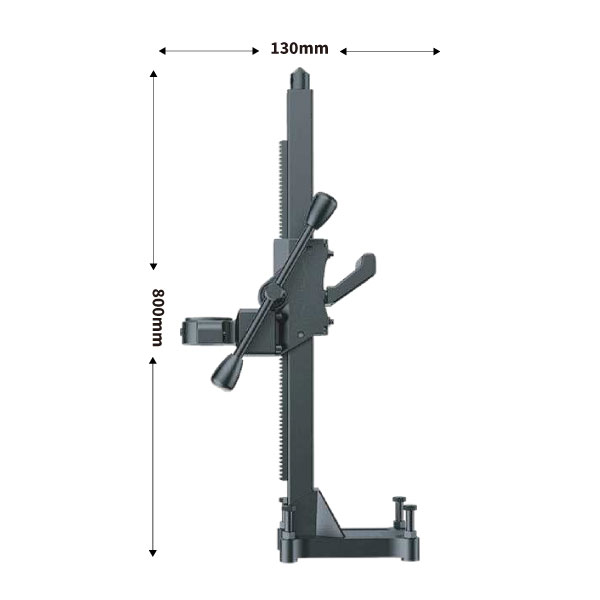

High-strength base The base material is solid and durable High-strength column The height of the column is 680mm, and the lifting range is greater. Soft rubber operating handle, non-slip and anti-sweat soft rubber is more comfortable to hold. Humanized handle design, easy to carry and improve work efficiency.

Specification:
Item Value
Model CF-7166 (Handheld Diamond Core Drill)
Collet Size / Max Drilling Diameter 180 mm
Input Power 2300 W
Rated Voltage 220 V~
Frequency 50 Hz
No-Load Speed 0–1600 r/min
Total Weight 6.8 kg
Drill Type Handheld diamond core drill
Application Reinforced concrete, masonry, load-bearing walls, through holes
