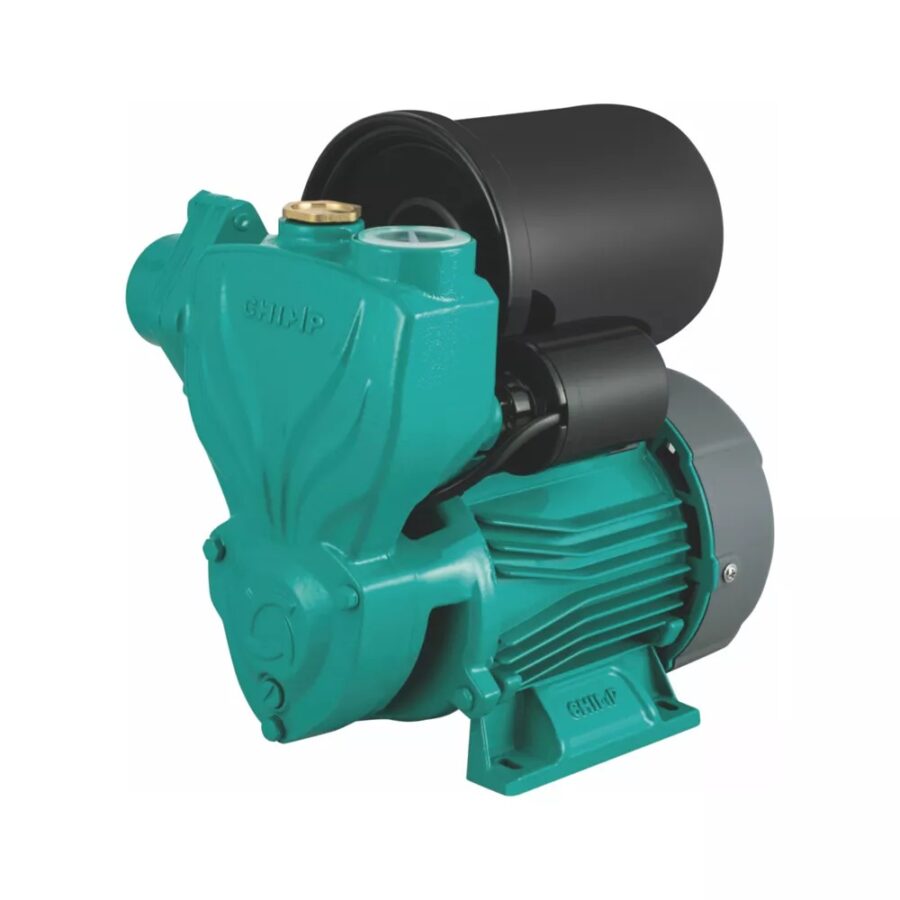

MODEL: CHIMP QT60-370 Self-Priming Water Pump
Pump
- Brass impeller
- 304 s.s mechanical seal
- Cast iron pump body and support be electrophoresis
- Suction: 8M
- Liquid: clean water,≤50°C
- Liquid PH value: 6.5-8.5
Motor
- Copper wire
- With thermal protector
- 304 s.s shaft
- Insulation class: B
- IPX4
- Ambient temperature: up to +40°C
- Liquid temperature: up to +40°C
- Max Working pressure: 6 bar
Working Condition
- Conveying medium: clean water.
- Maximum fluid temperature≤90°C.
- PH value: 6.5-8.5.
- Ambient temperature:≤50°C.
- Maximum sand content≤0.1%, particle diameter≤0.2mm.
- Rated power: 220V/50Hz, and the voltage fluctuation range is 0.9~1.1 times the rated value.
- When the temperature is lower than 0°C, anti-freezing work should be done. When not in use, the waterproof screw at the bottom of the pump body should be opened to drain the water in the pump body to avoid freezing and cracking the pump body.
Specification:
| Item | Value |
|---|---|
| Model | QT60-370 |
| Voltage | 240 |
| Power (kW) | 0.37 |
| Power (HP) | 0.5 |
| Max. Flow (L/min) | 2 |
| Max. Head (m) | 30 |
| Rated. Flow (m3/h) | 1 |
| Rated. Head (m) | 13 |
| Max. Suction (m) | 8 |
| Inlet/Outlet (in) | 1″ × 1″ |
| 1~MOT | 2850 min-1 |
| Speed | 3000 |
